Heavy Duty Turbo Repair Kit MHI TD02 TD025 TD03 + Dual Oil Hole/Super Back

Product  Information

P/N.

 015-1303

Item Name

MAMBA Turbo Repair Kit MHI TD025 TD03 Super Back with twin oil port performance thrust bearing HYUNDAI LOMBARDINI VOLVO BMW CITROEN RENAULT

Situation

 Brand New

Application

49173-00100,49173-00600,49173-00601,49173-00610,49173-00611,
49173-00620,49173-00621,49173-00700,49173-01110,49173-01200,
49173-01310,49173-01400,49173-02000,49173-02010,49173-02300,
49173-02301,49173-02401,49173-02410,49173-02412,49173-02420,
49173-02610,49173-02620,49173-02622,49173-02701,49173-02711,
49173-03000,49173-03010,49173-03100,49173-03110,49173-03200,
49173-03210,49173-03300,49173-03400,49173-03410,49173-04000,
49173-04100,49173-04110,49173-04200,49173-04210,49173-06100,
49173-06101,49173-06200,49173-06500,49173-06501,49173-06503,
49173-06511,49173-06601,49173-06603,49173-06613,49173-07050,
49173-07300,49173-07301,49173-07310,49173-07311,49173-07320,
49173-07321,49173-07330,49173-07331,49173-07340,49173-07341,
49173-07350,49173-07502,49173-07504,49173-07506,49173-07507,
49173-07508,49173-07516,49173-07518,49173-07522,49173-07610,
49173-07615,49173-07620,49173-07621,49173-07721,49173-07740,
49173-91110,49173-91200,49173-91310,49173-91400,49180-01000,
49180-02030,49373-01001,49373-01002,49373-01004,49373-02003,
49373-02013,49373-03006,49373-03011,49131-01000,49131-01010,
49131-02000,49131-02020,49131-02531,49131-03510,49131-04100,
49131-04300,49131-05000,49131-05001,49131-05010,49131-05011,
49131-05050,49131-05051,49131-05060,49131-05061,49131-05100,
49131-05101,49131-05111,49131-05150,49131-05151,49131-05160,
49131-05210,49131-05212,49131-05310,49131-05312,49131-05400,
49131-05403,49131-05500,49131-06003,49131-06006,49131-06007,
49131-06013,49131-06016,49131-06210,49131-07005,49131-07009,
49131-07011,49131-07015,49131-07016,49131-07019,49131-07025,
49131-07030,49131-07040,49131-07050,49131-07335,49131-07355,
49131-94100,49131-94300,90130-01040

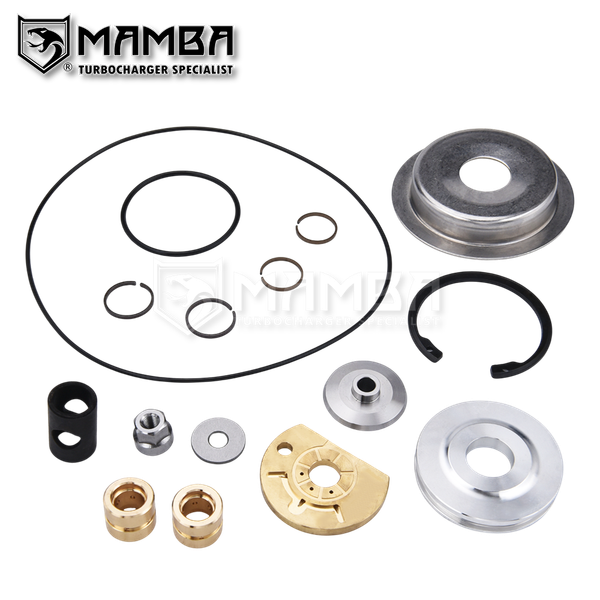

Kit Includes

Seal plate - SB x 1
Oil deflector x1
Performance Thrust bearing (twin oil port) x 1
Journal bearing x 2
Thrust spacer – SB x 1
Thrust collar x 1
O Ring (Φ60mm) x 1
O Ring (Φ39.4mm) x 1
Piston Ring T/E x 1
Piston Ring C/E x 1
Retaining Ring x 1
Spiral ring x 2
Lock nut x 1

Made by

MAMBATEK

Warranty

One Year

Note

We can offer each single part for repair shops or turbo manufacture, contact us if needed.

Instruction

Rebuild Instruction will be emailed to those who request it.
